One of the most common part types we see in our shop falls under the category of fittings. These kinds of parts are typically used to connect two or more pieces of material to help with the transfer of various substances. Most fittings are made to connect materials that are not alike, attaching different materials, different sizes, different shapes, or different directions of flow. As a leading brass nipple fittings manufacturer, Ashley Ward is equipped to help you with all your needs.
Custom Hydraulic Brass Fittings
A client from the hydraulics industry contacted Ashley Ward to manufacture a series of custom hydraulic brass fittings. These fittings allow for quick connection and disconnection of hydraulic lines. Using our premium Acme Gridley machines, we were able to maintain a tight tolerance of just (±) .002 of an inch, which allowed us to meet precise customer design specifications.
Industries
Commonly used in the area of fluid and power management, you will see custom hydraulic brass fittings used in plumbing, HVAC, hydraulics, pneumatics, and oil/gas industries.
Materials
They can vary in materials, although most commonly found in brass, copper & more. These types of parts are most closely associated with pipe and tubing products and are seen in both commercial and residential environments.
Types of Fittings We Produce
Fittings almost always have some sort of thread used for attaching them to another material and will be categorized by their use. Some uses included:
- Nipples
- Reducer
- Plug
- Barb
- Coupling
- Elbow
- & More

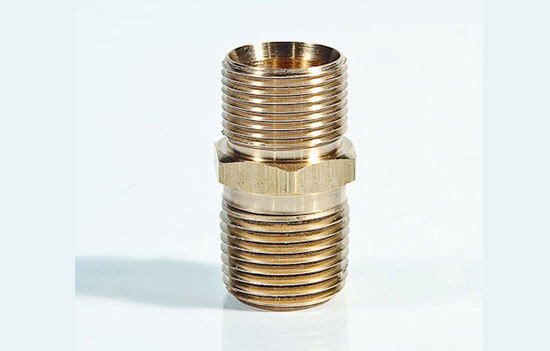

Brass Fittings - Precision Machined Brass Components Service List
| Product Description | This Brass Nipple is used within an Industrial Hydraulic Application |
| Capabilities Applied/Processes | Automatic Screw Machining |
| Equipment Utilized | Acme Gridley Machines |
| Overall Part Dimensions | O.D.: .8125" Length: 1.48" |
| Tightest Tolerances | ±.002" |
| Material Used | 360 Brass |
| Feature | NPT Thread |
| Volume | 150,000 Pieces |
| Turn Around Time | 6-8 Weeks |
| Industry for Use | Hydraulic |
| Delivery Location | Mason, Ohio |
| Tooling Costs | $1,625 |
| Standards Met | Customer supplied print, CAD Drawing |
| Product Name | Hydraulic Nipple |
